OrienterNet
Visual Localization in 2D Public Maps
with Neural Matching

Paul-Edouard Sarlin · Daniel DeTone · Tsun-Yi Yang · Armen Avetisyan · Julian Straub
Tomasz Malisiewicz · Samuel Rota Bulo · Richard Newcombe · Peter Kontschieder · Vasileios Balntas

CVPR 2023

Web demo | Colab | Paper | Project Page | Video

OrienterNet is a deep neural network that can accurately localize an image
using the same 2D semantic maps that humans use to orient themselves.

This repository hosts the source code for OrienterNet, a research project by Meta Reality Labs. OrienterNet leverages the power of deep learning to provide accurate positioning of images using free and globally-available maps from OpenStreetMap. As opposed to complex existing algorithms that rely on 3D point clouds, OrienterNet estimates a position and orientation by matching a neural Bird's-Eye-View with 2D maps.

Installation

OrienterNet requires Python >= 3.8 and PyTorch. To run the demo, clone this repo and install the minimal requirements:

git clone https://github.com/facebookresearch/OrienterNet
python -m pip install -r requirements/demo.txt

To run the evaluation and training, install the full requirements:

python -m pip install -r requirements/full.txt

Demo ➡️

Try our minimal demo - take a picture with your phone in any city and find its exact location in a few seconds!

• Web demo with Gradio and Huggingface Spaces
• Cloud demo with Google Colab
• Local demo with Jupyter nobook demo.ipynb

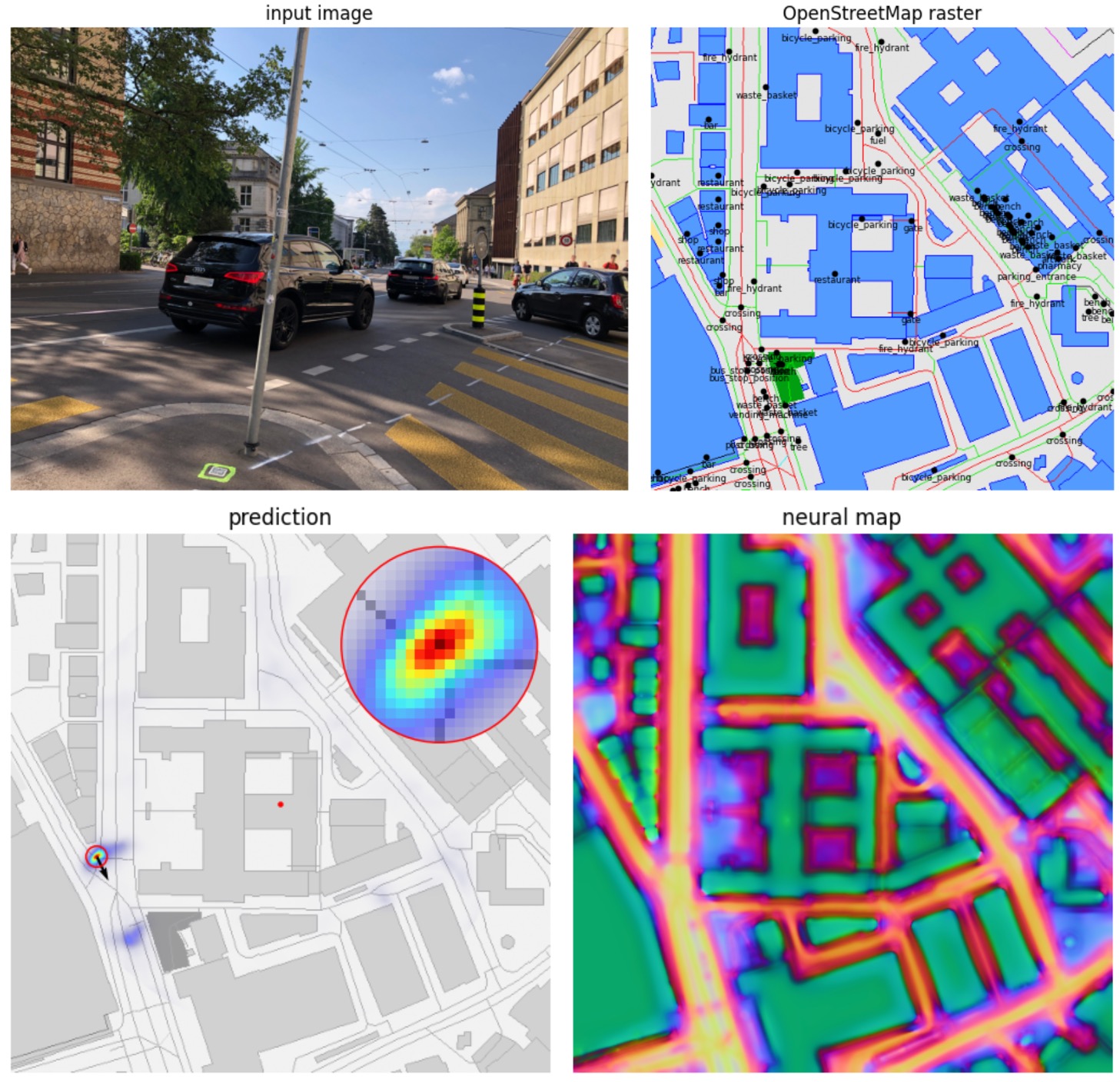

OrienterNet positions any image within a large area - try it with your own images!

Evaluation

Mapillary Geo-Localization dataset

python -m maploc.data.mapillary.prepare --token $YOUR_ACCESS_TOKEN

python -m maploc.evaluation.mapillary --experiment OrienterNet_MGL model.num_rotations=256

Recall xy_max_error: [14.37, 48.69, 61.7] at (1, 3, 5) m/°
Recall yaw_max_error: [20.95, 54.96, 70.17] at (1, 3, 5) m/°

python -m maploc.evaluation.mapillary [...] model.num_rotations=128

python -m maploc.evaluation.mapillary [...] --output_dir ./viz_MGL/ --num 100

python -m maploc.evaluation.mapillary --experiment OrienterNet_MGL --sequential model.num_rotations=256

Recall xy_seq_error: [29.73, 73.25, 91.17] at (1, 3, 5) m/°
Recall yaw_seq_error: [46.55, 88.3, 96.45] at (1, 3, 5) m/°

python -m maploc.evaluation.mapillary [...] chunking.max_length=20

KITTI dataset

python -m maploc.data.kitti.prepare

python -m maploc.evaluation.kitti --experiment OrienterNet_MGL model.num_rotations=256

Recall directional_error: [[50.33, 85.18, 92.73], [24.38, 56.13, 67.98]] at (1, 3, 5) m/°
Recall yaw_max_error: [29.22, 68.2, 84.49] at (1, 3, 5) m/°

python -m maploc.evaluation.kitti [...] --output_dir ./viz_KITTI/ --num 100

python -m maploc.evaluation.kitti --experiment OrienterNet_MGL --sequential model.num_rotations=256

Recall directional_seq_error: [[81.94, 97.35, 98.67], [52.57, 95.6, 97.35]] at (1, 3, 5) m/°
Recall yaw_seq_error: [82.7, 98.63, 99.06] at (1, 3, 5) m/°

Aria Detroit & Seattle

We are currently unable to release the dataset used to evaluate OrienterNet in the CVPR 2023 paper.

Training

MGL dataset

We trained the model on the MGL dataset using 3x 3090 GPUs (24GB VRAM each) and a total batch size of 12 for 340k iterations (about 3-4 days) with the following command:

python -m maploc.train experiment.name=OrienterNet_MGL_reproduce

Feel free to use any other experiment name. Configurations are managed by Hydra and OmegaConf so any entry can be overridden from the command line. You may thus reduce the number of GPUs and the batch size via:

python -m maploc.train experiment.name=OrienterNet_MGL_reproduce \
  experiment.gpus=1 data.loading.train.batch_size=4

Be aware that this can reduce the overall performance. The checkpoints are written to ./experiments/experiment_name/. Then run the evaluation:

# the best checkpoint:
python -m maploc.evaluation.mapillary --experiment OrienterNet_MGL_reproduce
# a specific checkpoint:
python -m maploc.evaluation.mapillary \
    --experiment OrienterNet_MGL_reproduce/checkpoint-step=340000.ckpt

KITTI

To fine-tune a trained model on the KITTI dataset:

python -m maploc.train experiment.name=OrienterNet_MGL_kitti data=kitti \
    training.finetune_from_checkpoint='"experiments/OrienterNet_MGL_reproduce/checkpoint-step=340000.ckpt"'

Interactive development

We provide several visualization notebooks:

• Visualize predictions on the MGL dataset
• Visualize predictions on the KITTI dataset
• Visualize sequential predictions

OpenStreetMap data

License

The MGL dataset is made available under the CC-BY-SA license following the data available on the Mapillary platform. The model implementation and the pre-trained weights follow a CC-BY-NC license. OpenStreetMap data is licensed under the Open Data Commons Open Database License.

BibTex citation

Please consider citing our work if you use any code from this repo or ideas presented in the paper:

@inproceedings{sarlin2023orienternet,
  author    = {Paul-Edouard Sarlin and
               Daniel DeTone and
               Tsun-Yi Yang and
               Armen Avetisyan and
               Julian Straub and
               Tomasz Malisiewicz and
               Samuel Rota Bulo and
               Richard Newcombe and
               Peter Kontschieder and
               Vasileios Balntas},
  title     = {{OrienterNet: Visual Localization in 2D Public Maps with Neural Matching}},
  booktitle = {CVPR},
  year      = {2023},
}
